HDP24-24-31SE-L017

Name: TE Connectivity HDP24-24-31SE-L017
Brand: TE Connectivity / DEUTSCH
SKU: 571-HDP242431SEL017
Price: 188.57 NOK
Availability: InStock

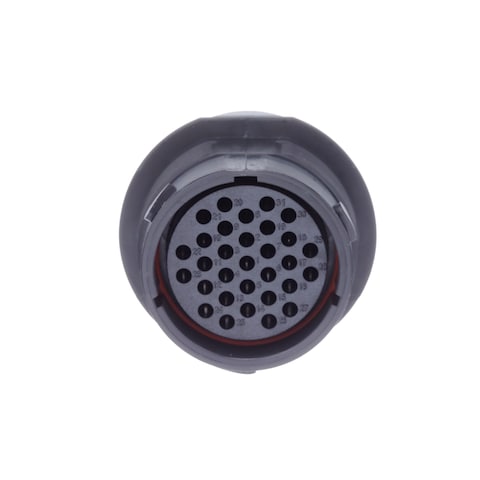

Images are for reference only
See Product Specifications

Mouser No:

571-HDP242431SEL017

Mfr. No:

HDP24-24-31SE-L017

Mfr.:

TE Connectivity / DEUTSCH

Description:

Automotive Connectors RECP ASM

Datasheet:

HDP24-24-31SE-L017 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity / DEUTSCH HDP24-24-31SE-L017

Add To Project

Add Notes

In Stock: 160

Stock:: 160

Can Dispatch Immediately

An unexpected error occured.Please try again later.
On Order:: 900

Expected 8/18/2025
Factory Lead Time:: 13

Weeks Estimated factory production time for quantities greater than shown.

Minimum: 1 Multiples: 1

Enter Quantity:

Unit Price:

kr -,--

Ext. Price:

kr -,--

Pricing (NOK)

Qty.	Unit Price	Ext. Price
	kr 188,57	kr 188,57
	kr 174,15	kr 1 741,50

Products found:

To show similar products, select at least one checkbox

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Automotive Connectors
RoHS:
Product:	Housings
Accessory Type:	Plug Housing
Number of Positions:	31 Position
Gender:	Receptacle (Female)
Mounting Style:	Panel Mount
Termination Style:	Crimp
Wire Gauge Min:	20 AWG
Wire Gauge Max:	14 AWG
Color:	Black
Series:	HDP20
Packaging:	Bulk
Application:	Wire to Wire
Attachment Hole Diameter:	1.5 mm
Brand:	TE Connectivity / DEUTSCH
Contact Gender:	Without Socket Contacts
Current Rating:	13 A
Dimensions:	50.8 mm x 47.63 mm x 45.77 mm
Flammability Rating:	UL 94 V-1
Height:	47.63 mm
Housing Material:	Polyamide (PA)
Ingress Protection:	IP67
Length:	45.77 mm
Locking Mechanism:	Integrated in Housing
Material:	Plastic
Mating Gender:	Plug
Mating Part Number:	HDP26-24-31
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 55 C
Mounting Angle:	Straight
Product Type:	Automotive Connectors
Factory Pack Quantity:	30
Subcategory:	Automotive Connectors
Tradename:	HD
Type:	Receptacle
Voltage Rating:	250 V
Width:	50.8 mm
Wire Gauge Range:	14 AWG to 20 AWG
Unit Weight:	58 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

HDP24-24-31SE-L017 Datasheet

Images

PCN

Product Catalogs

Terminals and Connectors (PDF)

RoHS Certificate (PDF)

CNHTS:: 8538900000
TARIC:: 8536700099
CAHTS:: 8536700000
USHTS:: 8538908180
JPHTS:: 853890000
MXHTS:: 85367001
BRHTS:: 85367000
ECCN:: EAR99

HDP20 Connectors

TE Connectivity's (TE) / DEUTSCH HDP20 connectors are heavy-duty rated, environmentally sealed, composite shell, multi-pin connectors. The composite thermoplastic shell is suited for applications where chemicals can damage a connector housing. The TE DEUTSCH HDP20 connector series features quick connect-disconnect bayonet coupling, single-hole bulkhead mounting, silicone seals, and a rear insertion/rear removal contact system.

HD Harsh Environment Connectors

TE Connectivity's (TE) DEUTSCH HD harsh environment connectors are a rugged and reliable connector system that performs in harsh environments. TE's HD10 series is a dependable solution used to eliminate problems like assembly and maintenance time and is primarily used for diagnostic connectors. The HD30 and HDP20 series connectors are heavy-duty, environmentally sealed, multi-pin circular connectors designed for the truck, bus, and off-highway industry. Available in metal or thermoplastic housings, HD connectors offer multiple pin configurations that accept contact sizes 4 through 20.

HD Harsh Environment Connectors

TE Connectivity / DEUTSCH HD connectors are an environmentally sealed, thermoplastic, and cylindrical connector series. The HD series is heavily used for diagnostic connectors, eliminates problems associated with assembly and maintenance time, and is designed for long service life.
