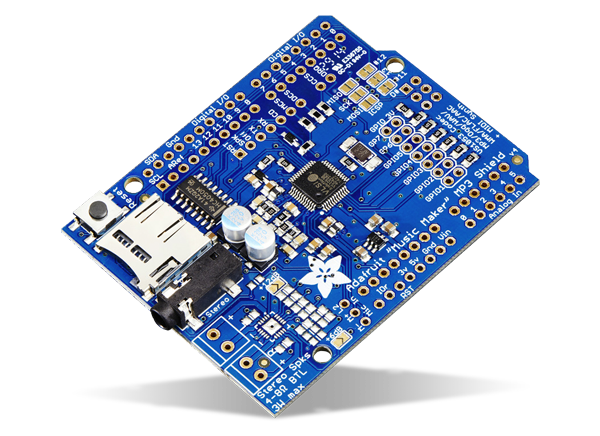

Adafruit 1790 Music Maker MP3 Shield makes it easy to enable any Arduino-based project with audio capabilities. The Music Maker MP3 Shield is based on VLSI VS1053B Encoding/Decoding (codec) ICm which can decode a wide variety of audio formats. Th Music Maker Shield can be used to record audio in both PCM (WAV) and compressed Ogg Vorbis. All the functionalities are implemented in a lightweight SPI interface so that any Arduino can play audio from an SD card. The 1790 Music Maker MP3 Shield features stereo-audio-out with proper audio filter caps, 7-extra GPIOs, a microSD-card socket, and 3.3V/5.0V level shifting for SD and MP3 chipsets. The Music Maker MP3 Shield works with Arduino Uno, Mega, or Leonardo.
VS1053B Codec Chip
Decode a wide variety of audio formats like MP3, AAC, Ogg Vorbis, WMA, MIDI, FLAC, and WAV (PCM and ADPCM)
Compatible with Arduino Uno, Leonardo, or Mega
Stereo audio out with proper audio filter caps and ground reference
7 extra GPIOs that can be written or read through the Arduino library for reading buttons or lighting LEDs
MicroSD card socket for any FAT16/FAT32 formatted SD card from 64Mb or greater
Full 3.3V/5.0V level shifting for SD and MP3 chipsets
Built-in MIDI synth/drum machine with dozens of instruments

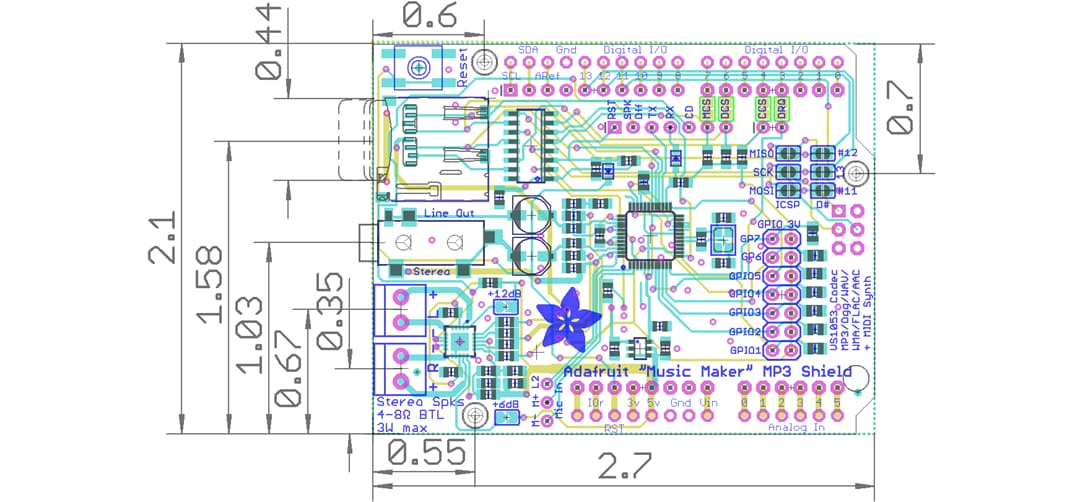

69mm x 53mm x 2mm PCB
