Alliance Memory AS4C64M32MD1A-5BIN 2Gb LPDDR SDRAM

Alliance Memory AS4C64M32MD1A-5BIN 2Gb LPDR SDRAM is a four banks mobile DDR DRAM organized as 4 banks x 16M x 32. The AS4C64M32MD1A-5BIN SDRAM is designed for high performance and operates at low power. This SDRAM comes in a double-data-rate architecture that offers two data transfers per clock cycle. The AS4C64M32MD1A-5BIN SDRAM features bidirectional data strobe (DQS) and differential clock inputs (CK and CK#). This SDRAM provides internal temperature compensated self-refresh, edge-aligned data output, and center-aligned data input.

Features

Double-data-rate architecture:
- Two data transfers per clock cycle
Bidirectional data strobe (DQS)
Four banks operation
Differential clock inputs (CK and CK#)
MRS cycle with address key programs
EMRS cycle with address key programs
Internal temperature-compensated self-refresh

All inputs except data and DM are sampled at the positive-going edge of the system clock (CK)
Data I/O transactions on both edges of the data strobe and DM for masking
Edge aligned data output and center-aligned data input
DM for write masking only
Clock stop capability

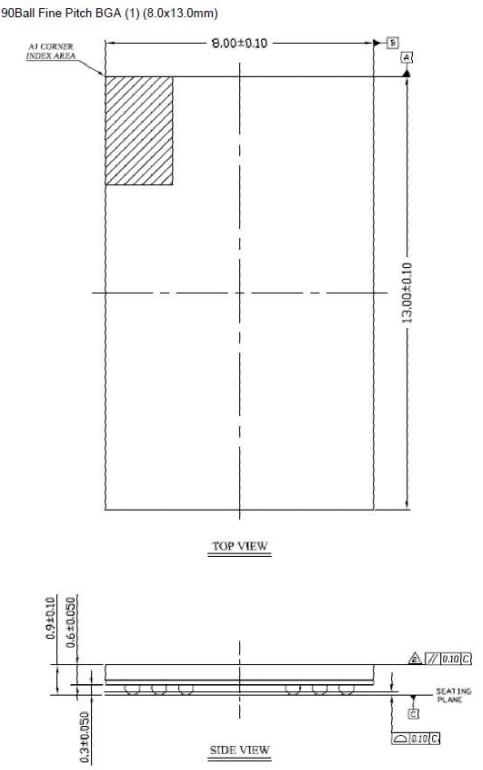

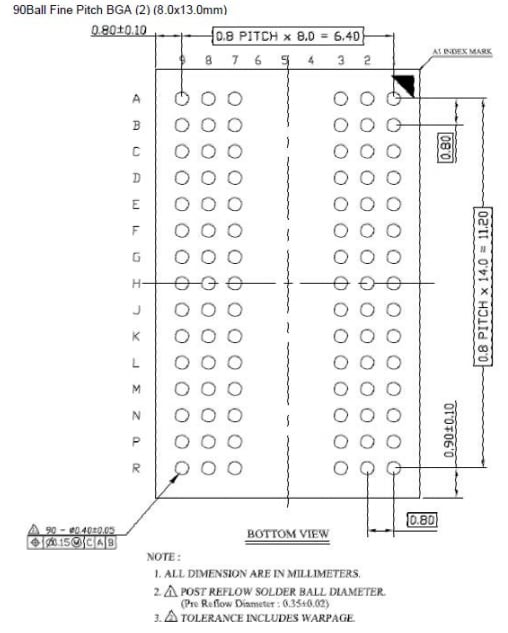

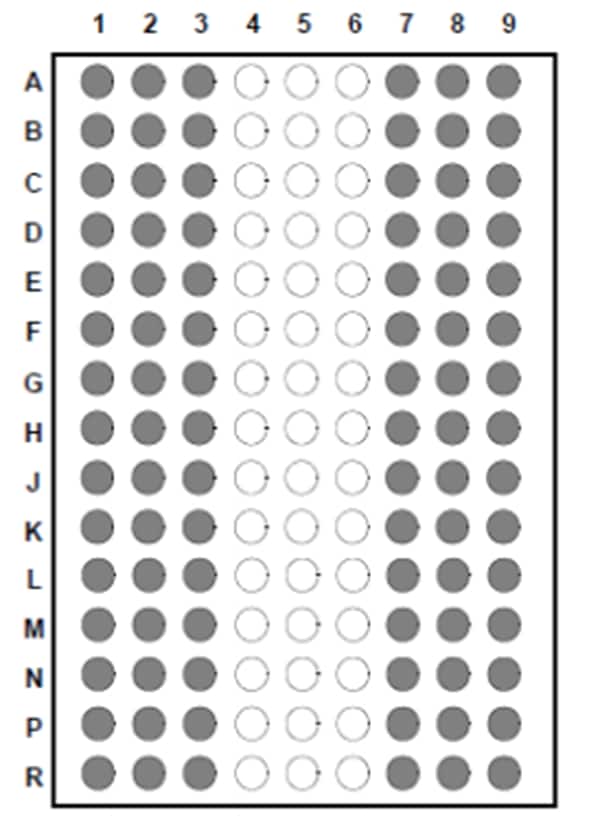

x32 8mm x 13mm 90 ball FPBGA
-40°C to 85°C operating temperature range (industrial type)
