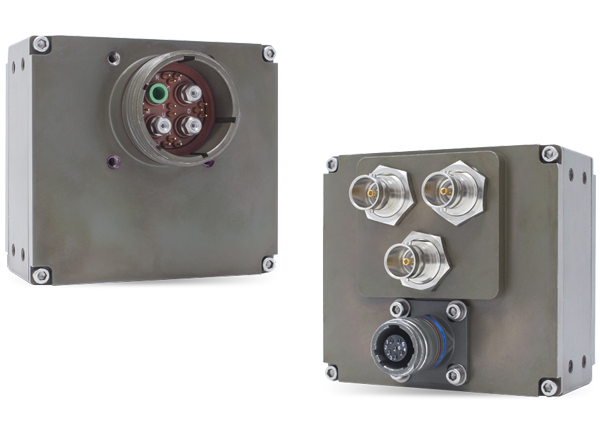

Amphenol Aerospace 3G / HD / SD-SDI Fiber Optic Media Converters transmit and receive SD / HD / 3G-SDI signals over fiber optic cables. This solution is offered as a sub-system converter that uses fiber inputs / outputs made for 9/125 micron single-mode fiber. The module converts SDI copper signals to fiber optics on a MIL DTL-38999 connector with a Samtec QSE connector handling the copper, SDI, and control signals. Amphenol Aerospace 3G / HD / SD-SDI Fiber Optic Media Converters operate in -40°C to +85°C temperature range and are ideal for military / commercial aerospace environments.
Converts SDI copper signals to fiber optics on a MIL DTL-38999 connector
Fiber outputs are made for 9/125 micron single-mode fiber with 1310nm wavelengths
Input power is brought via Samtec QSE and is 3.3VDC
Copper, SDI, and control signals come to the subsystem via Samtec QSE connector
-40°C to +85°C operating temperature range
Military / commercial aerospace environments
Harsh environment avionics, ground systems, naval systems
Amphenol Aerospace High-Speed Media Converters
Converter modules designed for rugged military/commercial applications on land, air, and sea.
