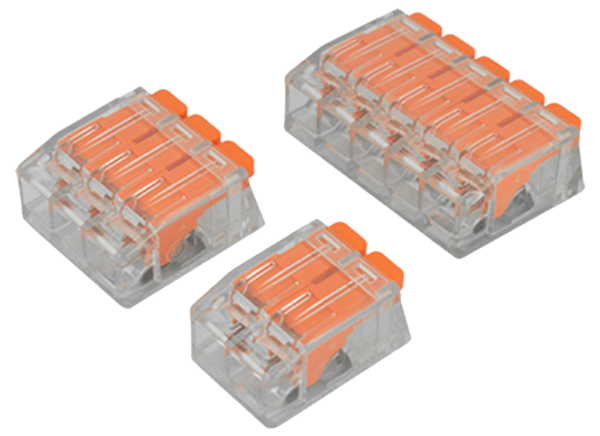

Amphenol Anytek N3 Pluggable Terminal Blocks

Amphenol Anytek N3 Pluggable Terminal Blocks feature transparent housing to allow engineers to visually inspect whether a conductor is inserted properly and stripped to the correct length. These splicing wire connectors work with all conductor types with sizes ranging from 0.2mm2 to 4mm2 (24AWG to 2 AWG). Two, three, or up to five wires can be connected at the same time. Convenient testing conditions are available via two easy-to-access test ports, one in the wire entry direction and one opposite of this. The 5.6mm-pitch connectors have up to a 35A rated current and a 600V rated voltage. Amphenol Anytek N3 Pluggable Terminal Blocks are designed for lighting applications, including switches, sockets, kitchen grill lamps, spotlights, and smart homes.


  • Transparent housing allows visual inspection of wire connection
  • Two easy-to-access test ports
  • UL486C standard


  • Lighting
  • Switches
  • Sockets
  • Kitchen grill lamps
  • Spotlights
  • Smart homes


  • 2P/3P/5P poles
  • 5.6mm pitch
  • 600V rated voltage
  • 3.4KV withstanding voltage
  • 35A rated current
  • 24AWG to 12AWG wire range
  • 11mm to 12mm wire strip length
  • 500MΩ @ 500VDC insulation resistance
  • -40°C to +105°C operating temperature range

Example of Wire Insertion

Mechanical Drawing - Amphenol Anytek N3 Pluggable Terminal Blocks
Published: 2020-05-22 | Updated: 2022-03-11
