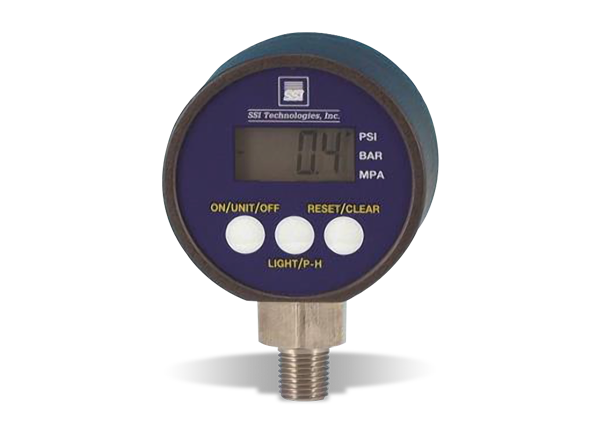

Amphenol / SSI Technologies Model MG1-9V MediaGauge™ Digital Pressure Gauges are NEMA 4X multi-functional digital pressure gauges that are well-suited for marine applications. These stand-alone 9V battery-operated gauges contain a media-isolated piezoresistive pressure sensing element, signal conditioning circuitry for temperature and calibration compensation, a 316L stainless steel input pressure port, and an LCD backlit display. This Amphenol / SSI Technologies MG1-9V series offers an accuracy of ±1.0% full scale and measures pressures from 5PSI to 5000 PSI. A variety of keypad-operated functions are available such as multiple pressure unit display readings (PSI, BAR, or MPS), memory storage of maximum peak pressure readings, and zero adjustment.
Stand-alone 9V battery-operated gauges
Well-suited for marine applications
±1.0 full scale accuracy
5PSI to 5000PSI pressure range
NEMA 4X rated
316L stainless steel input pressure port
Media-isolated piezoresistive pressure sensing element
Signal conditioning circuitry for temperature and calibration compensation
LCD backlit display
Keyboard-operated functions: auto-zero and peak-hold
-10°C to +60°C operating temperature range
Amphenol / SSI Technologies MediaGauge™ Digital Pressure Gauges
Stand-alone 9V battery-operated devices with a piezoresistive pressure sensing element and more.
