Analog Devices Inc. AD4020 20-Bit Precision SAR ADC
Analog Devices Inc. AD4020 20-Bit Precision SAR ADC is a low-power, low-noise, 1.8MSPS 20-Bit Precision Successive Approximation Register (SAR) Analog-to-Digital Converter. The AD4020 ADC offers ease-of-use features that lower the signal chain power, reduce signal chain complexity, and enable higher channel density. Operating using a 1.8V supply, the AD4020 ADC provides a ±VREF fully differential input range with a 2.4V to 5.1V. VREF range. In turbo mode, the AD4020 ADC consumes only 15mW at 1.8MSPS with a minimum SCK rate of 71MHz. The ADC achieves ±3.1ppm integral nonlinearity (INL). The AD4020 guarantees no missing codes at 20 bits with 100.5dB typical signal-to-noise ratio (SNR).
The Analog Devices AD4020 ADC's SPI-compatible versatile serial interface provides seven different modes. Using the SDI input, designers can daisy-chain several ADCs on a single 3-wire bus. The AD4020 ADC is specified for operation from -40°C to +125°C and is compatible with 1.8V, 2.5V, 3V, and 5V logic.
Features
- Guaranteed 20-bit no missing codes
- Low Power
- 9.0mW at 1.8MSPS (VDD only)
- 83μW at 10kSPS, 15mW at 1.8MSPS (total)
- Ease-of-Use Features Reduce System Power and Complexity
- Input overvoltage clamp circuit
- Reduced nonlinear input charge kickback
- High-Z mode
- Long acquisition phase
- Input span compression
- Fast conversion time allows low SPI clock rates
- SPI-programmable modes, read/write capability, status word
- 1.8MSPS maximum throughput
- ±3.1ppm maximum INL
- SNR: 100.5dB typical at 1kHz, 99dB typical at 100kHz
- THD: −123dB typical at 1kHz, −100dB typical at 100kHz
- Differential Analog Input Range
- 0V to VREF with VREF from 2.4V to 5.1V
- Single 1.8V supply operation with 1.71V to 5.5V logic interface
- SAR architecture: no latency/pipeline delay
- Valid first accurate conversion
- −40°C to +125°C operating temperature range
- SPI/QSPI/MICROWIRE/DSP compatible serial interface
- Ability to daisy-chain multiple ADCs and busy indicator

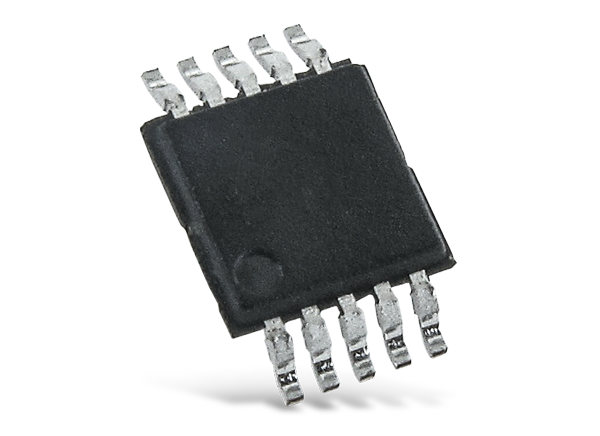

- 10-lead packages: 3mm x 3mm LFCSP, 3mm x 4.90mm MSOP
Applications
- Automatic test equipment
- Machine automation
- Medical equipment
- Battery-powered equipment
- Precision data acquisition systems
Block Diagram
Videos
Evaluation Boards
Analog Devices Inc. EVAL-AD4020FMCZ Eval for AD4020 20-Bit SAR ADC
Demonstrates the performance of the AD4020 20-Bit SAR ADCs.
Analog Devices Inc. EVAL-SDP-CB1Z System Demonstration Platform
Provides a means of communicating w/PC from the system under evaluation.
Analog Devices Inc. EV-AD4020REFDGNZ Reference Design Board
Integrates a unique ADI programmable gain instrumentation amplifier (PGIA).
