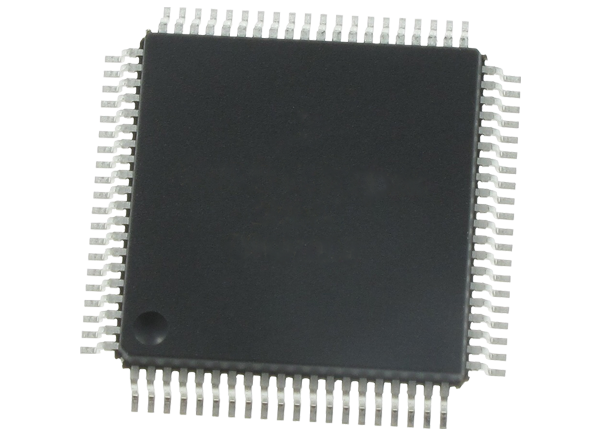

Analog Devices Inc. AD8450 Precision Analog Front End & Controllers
Analog Devices Inc. AD8450 Precision Analog Front End & Controllers are ideal for testing and monitoring battery cells. The precision programmable gain instrumentation amplifier (PGIA) measures the battery charge / discharge current while a programmable gain difference amplifier (PGDA) measures the battery voltage. Internal laser trimmed resistor networks set the gains for the PGIA and the PGDA, optimizing the performance of the AD8450 over the rated temperature range of -40°C to +85°C. PGIA gains are 26, 66, 133, and 200. PGDA gains are 0.2, 0.27, 0.4, and 0.8. ADI AD8450 includes resistor programmable overvoltage and overcurrent detection and current sharing circuitry. Current sharing is used to balance charge among multiple batteries.
Features
- Integrated constant current and voltage modes with automatic switchover
- Charge and Discharge modes
- Precision voltage and current measurement
- Integrated precision control feedback blocks
- Precision interface to PWM or linear power converters
- Programmable gain settings
- 26, 66, 133, 200 Current sense gains
- 0.2, 0.27, 0.4, 0.8 Voltage sense gains
- Programmable OVP, OCP fault detection
- Current sharing and balancing
- Excellent AC and DC performance
Applications
- Battery cell testing and formation
- Battery module testing
Development Tool
Associated Solutions
Analog Devices Inc. Lithium Ion Battery Formation & Test Solutions
Small, environmental friendly system for testing and formation rechargeable battery cells & packs.
Associated Products
Analog Devices Inc. ADA4177 Operational Amplifiers
OVP and EMI Protected, Precision, Low Noise and Bias Current Op Amps.
Analog Devices Inc. ADA4522 Operational Amplifiers
Single, Dual, and Quad Channel zero-drift Op Amps optimized for accuracy & high immunity to EMI.
Analog Devices Inc. AD8221 Precision Instrumentation Amplifier
Instrumentation amplifier that delivers the industry’s highest CMRR over frequency in its class.
Analog Devices Inc. AD8226 Instrumentation Amplifiers
±1.35V to 36V Wide Supply Range, Rail-to-Rail Output Instrumentation Amplifiers.
Analog Devices Inc. AD8276/AD8277 Unity-Gain Difference Amplifiers
Unity-gain difference amplifiers for precision signal conditioning in power-critical applications.
Analog Devices Inc. AD8451 Precision Analog Front-End & Controller
Designed to test and monitor battery cells, interfaces directly with ADI ADP1972 PWM controller.
Analog Devices Inc. AD8479 Precision Difference Amplifier
Precision difference amplifier with a very high input common-mode voltage range.
Analog Devices Inc. ADTL082/ADTL084 JFET Input Amplifiers
Delivers lower noise, offset voltage, offset drift over temperature, & bias current than TL08x.
Analog Devices Inc. AD8452 PWM Controllers
Ideal for high volume battery testing and formation manufacturing.
