Analog Devices Inc. ADP1071-2EBZ12.1V Evaluation Board

Analog Devices Inc. ADP1071-2EBZ12.1V Evaluation Board is designed to evaluate the ADP1071-2 in a power supply application. The ADP1071-2EBZ12.1V Board is set up to act as an isolated power supply unit (PSU), with a rated load of 12.1VDC, 3A in steady-state (5A peak) from a 36VDC to 60VDC source.

The ADP1071-2EBZ12.1V Board provides synchronization through connectors, allowing direct paralleling evaluation when multiple evaluation boards are connected in parallel to a common bus. Multiple test points allow easy access to all critical nodes and pins.


  • Full support evaluation kit for the ADP1071-2
  • 36W flyback topology
  • 12.1V output voltage (VDC)
  • 3A steady state, 5A peak
  • Forced CCM operation
  • Dedicated internal primary and secondary side MOSFET drivers
  • External reference signal tracking
  • Precision enabled undervoltage lockout with hysteresis
  • Short-circuit, output overvoltage, cycle by cycle input overcurrent, and over temperature protection
  • Frequency synchronization
  • Soft start and soft stop functionality

Required Equipment

  • DC power supply capable of 36VDC to 60VDC, 3A
  • Electronic load capable of 150W, 0V to 60V
  • Oscilloscope capable of ≥500MHz bandwidth, 2 channels to 4 channels
  • Precision digital multimeter (HP34401 or equivalent)

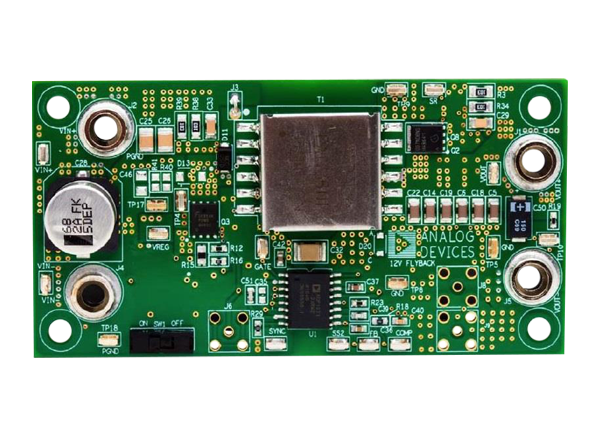

Front & Back View

Analog Devices Inc. ADP1071-2EBZ12.1V Evaluation Board
Published: 2020-03-17 | Updated: 2022-03-10
