Analog Devices Inc. ADRF5019 SPDT RF Switches
Analog Devices Inc. ADRF5019 Single Pole Double Throw (SPDT) RF Switches are nonreflective switches that are manufactured in a silicon process. These RF switches operate from 100MHz to 13GHz frequency range, 0.8dB insertion loss, and 45dB of isolation at 8GHz. The ADRF5019 RF switches feature high input linearity, high power handling, and are pin-compatible with the HMC1118 low-frequency cutoff version switches. Typical applications include test instrumentation, microwave radios and Very Small Aperture Terminals (VSATs), military radios, radars, and Electronic Counter Measures (ECMs), fiber optics, and broadband telecommunications.
Features
- Manufactured in a silicon process
- Incorporates a nonreflective 50Ω design
- CMOS compatible and Low Voltage Transistor-Transistor Logic (LVTTL) compatible controls
- Operate with a single positive supply voltage as well
- Pin compatible with HMC1118 switch
Specifications
- 0.8dB at 8GHz low insertion loss
- 45dB at 8GHz high isolation
- High input linearity:
- P1db: 39dBm
- IP3: 60dBm (typical)
- High power handling:
- 35dBm insertion loss path
- 27dBm hot switching
- 2kV (class 2) HBM ESD rating
- 0.05dB RF settling time: 375ns
- 0.1dB RF settling time: 300ns

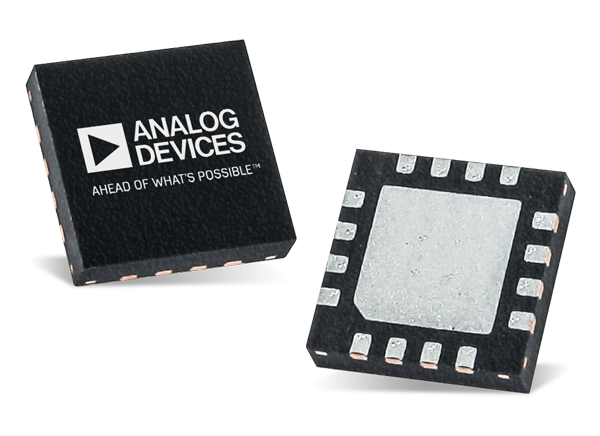

- 16-lead and 3mm x 3mm Lead Frame Chip Scale Package (LFCSP)
- -40°C to 105°C operating temperature range
Applications
- Test instrumentation
- Microwave radios and Very Small Aperture Terminals (VSATs)
- Military radios, radars, and Electronic Counter Measures (ECMs)
- Fiber optics and broadband telecommunications
Functional Block Diagram
View Evaluation Board
Analog Devices Inc. EVAL-ADRF5019 Evaluation Board
A platform to evaluate the ADRF5019 100MHz to 13GHz SPDT switch manufactured in a silicon process.
Published: 2019-11-13
| Updated: 2022-03-10
