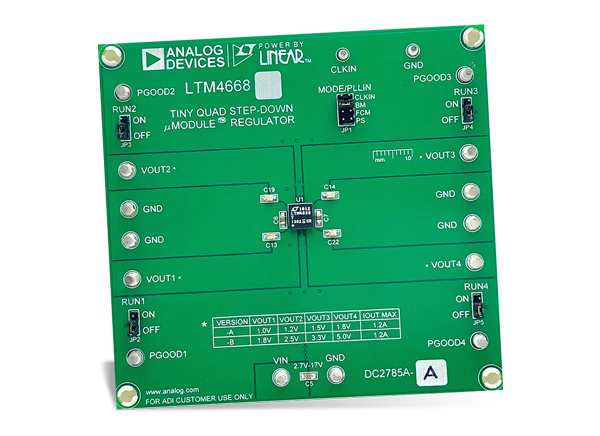

Analog Devices Inc. DC2785A-A Demo Board for LTM4668
Analog Devices DC2785A-A Demo Board for LTM4668 has an operating input voltage range of 2.7V to 17V and can provide an output current of up to 1.5A. The LTM4668 is a complete DC/DC point of load regulator in a thermally enhanced 6.25mm × 6.25mm × 2.1mm BGA package requiring only a few input and output capacitors. The DC2785A-A offers an output voltage that can be programmed from 0.6V up to 1.8V.
Associated Products
Analog Devices Inc. LTM4668A & LTM4668 Quad DC/DC µModule® Regulators
Step-down devices include outputs that can be paralleled in an array for up to 4.8A capability.
Analog Devices Inc. DC2785A-B Demo Board for LTM4668A Regulators
Features 2.7V to 17V input voltage range, up to 1.2A output current, and 89.2% high efficiency.
Layout
Test Setup
