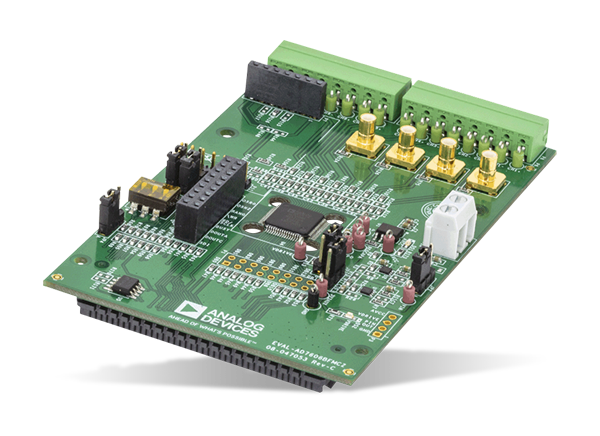

Analog Devices EVAL-AD7606BFMCZ ADC Evaluation Board allows users to easily evaluate the features of the AD7606B analog-to-digital converter (ADC). The EVAL-AD7606BFMCZ can be controlled by the system demonstration platform controller board (EVAL-SDP-CH1Z (SDP-H1)). The EVAL-SDP-CH1Z (SDP-H1) allows the EVAL-AD7606BFMCZ to be controlled through the USB port of a PC using the AD7606B evaluation software.
Onboard components include an ADP7118 5V, low noise low dropout regulator (LDO) and an ADR4525 high-precision, bandgap voltage reference.
Full-Featured Evaluation Board for the AD7606B
Onboard Power Supplies
SDP-H1 Compatible (EVAL-SDP-CH1Z (SDP-H1))
PC Software for Control and Data Analysis
Time and Frequency Domain
EVAL-AD7606BFMCZ Evaluation board
Additional Equipment Needed
System Demonstration Platform (SDP) High-Speed Controller Board (EVAL-SDP-CH1Z (SDP-H1))
PC Running Windows Vista or Windows 7 with a USB 2.0 Port
DC/AC Signal Source SMB and USB Cables
External Supply (Optional)
AD7606B Data Sheet
EVAL-AD7606BFMCZ User Guide
Bill of Materials
AD7606B Evaluation Software
Analog Devices Inc. AD7606 16-Bit Data Acquisition Systems (DAS)
Offers eight, six, or four channels and operates from a single 5V supply.
