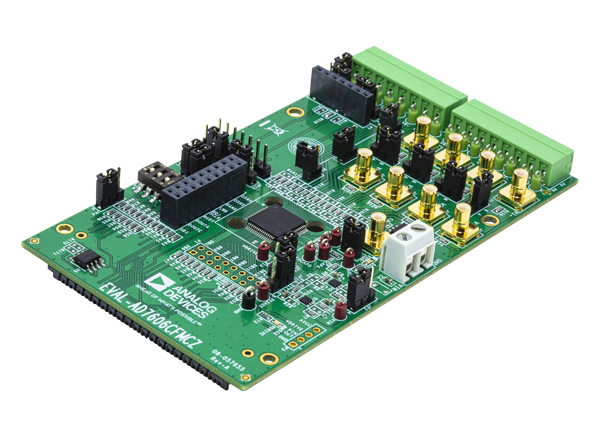

Analog Devices Inc. EVAL-AD7606C-18 Evaluation Board

Analog Devices Inc. EVAL-AD7606C-18 Evaluation Board is used to evaluate the features of the AD7606C-18 analog-to-digital converter (ADC). The EVAL-AD7606C18FMCZ is controlled by the EVAL-SDP-CH1Z (SDP-H1) system demonstration platform (SDP). The SDP-H1 controls the EVAL-AD7606C18FMCZ via a USB port using the Analysis Control Evaluation (ACE) software. This software is available to download from the ACE software page or the AD7606C-18 product page.


  • Fully featured evaluation board for the AD7606C-18
  • On-board power supplies
  • Standalone capability
  • SDP-H1 compatible
  • PC software for control and data analysis
  • Time and frequency domain
Published: 2020-12-07 | Updated: 2020-12-11
