Analog Devices Inc. EVAL-ADM2795EARDZ Arduino Shield for the ADM2795E

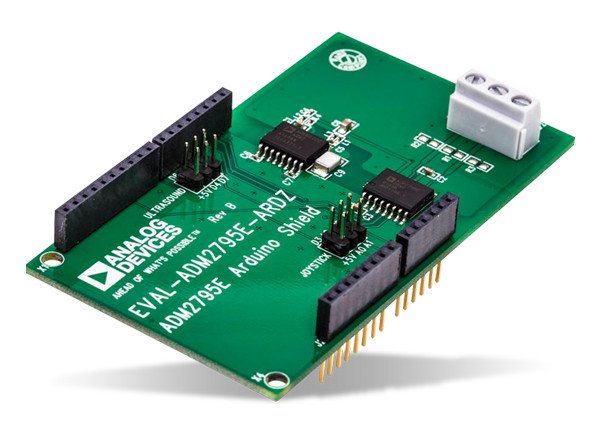

Analog Devices Inc. EVAL-ADM2795EARDZ Arduino Shield for the ADM2795E can be used with the widely available Arduino UNO to easily evaluate the ADM2795E. The ADM2795E is a 5kV rms signal-isolated RS-485 transceiver with Level 4 IEC EMC and 24V supply fault protection. The Analog Devices Inc. EVAL-ADM2795EARDZ Arduino Shield features an RS-485 bus cable connector, an Arduino connector block, and some jumper blocks. The jumper blocks can be used to connect to external devices such as ultrasonic sensors (e.g. Ultrasonic HC-SR04 Distance Measuring Transducer) or joysticks (Arduino Compatible Analogue Joystick Controller).
