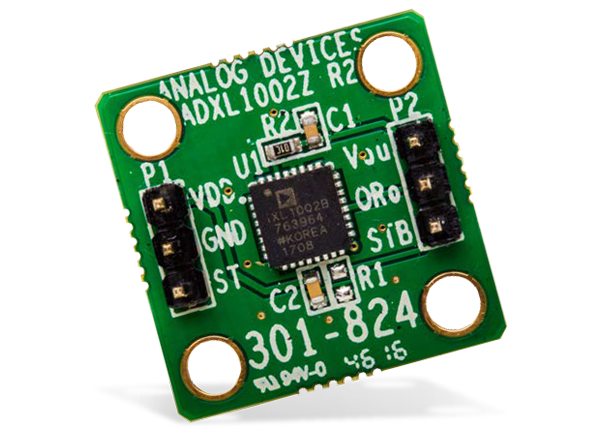

Analog Devices Inc. EVAL-ADXL1002Z Evaluation Board helps designers quickly evaluate the performance of the ADXL1001 and ADXL1002 accelerometers. Designed to mount on a mechanical shaker, the EVAL-ADXL1002Z from Analog Devices is constructed with an extra thick PCB that measures 0.8 square inches. A simple RC low-pass filter is included at the output with a −3dB bandwidth of about 20kHz. Designers can replace components to implement their own application-specific low-pass filter on the device's output.
2 sets of spaced vias for populating 6-pin headers
Easily attaches to prototyping board or PCB
Small size and board stiffness minimize impact on the user system and acceleration measurements
Functional Block Diagram
Analog Devices Inc. ADXL100x MEMS Accelerometers
High frequency, low noise MEMS accelerometers for industrial condition monitoring applications.
