Analog Devices Inc. EVAL-AD5413SDZ Evaluation Board
Analog Devices Inc. EVAL-AD5413SDZ Evaluation Board provides a demonstration and development platform for the AD5413 14-Bit Voltage and Current Output DAC (Digital-to-Analog Converter). The EVAL-AD5413SDZ requires the SDP-S (System Demonstration Platform-Serial) Controller Board (EVAL-SDP-CS1Z), which is not supplied with the kit. The Analog Devices Inc. EVAL-AD5413SDZ interfaces to the USB port of a PC via the SDP-S Board. The Analysis, Control, Evaluation (ACE) Software allows simplified programming of the AD5413.
ACE Software
Analysis, Control, Evaluation (ACE) is a desktop software application which allows the evaluation and control of multiple evaluation systems from across ADI’s product portfolio. The application consists of a common framework and individual component-specific plug-ins.
Download the ACE Software from Analog Devices Inc.
Features
- Pre-mounted AD5413 14-Bit Voltage and Current Output DAC in a LFCSP32 package
- On-board 2.5V voltage reference
- Test points for key signals
- Status LEDs
- Reset switch
- ACE Software enables customization of registers
Required Equipment
- SDP-S Controller Board (EVAL-SDP-CS1Z)
- Benchtop power supply and connector cables
- PC or laptop
- ACE Software
Supported Devices
Analog Devices Inc. AD5413 14-Bit Voltage & Current Output DAC
Single-channel, 14-bit voltage and current output DAC ideal for process control applications.
Related Products
Analog Devices Inc. SDP-S Controller Board (EVAL-SDP-CS1Z)
Allows for configuration and capture of data on daughter boards from the PC via USB.

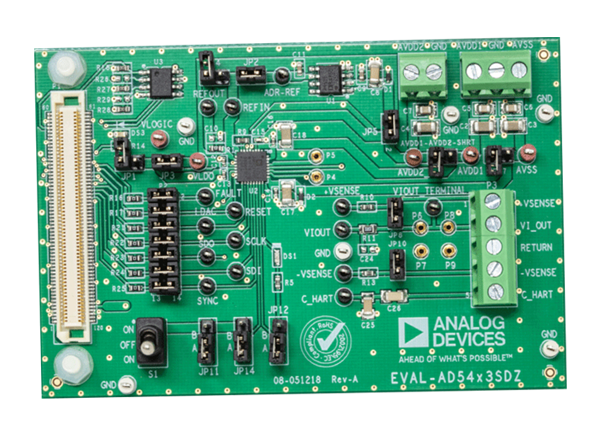

Board Layout
Setup
