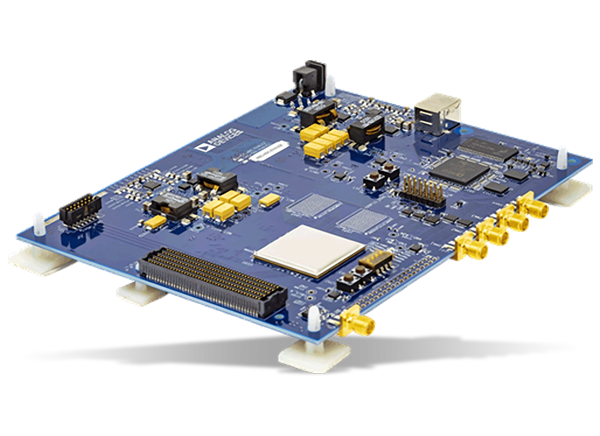

Analog Devices Inc. HSC-ADC-EVALEZ High-Speed ADC Evaluation Platform
Analog Devices Inc. HSC-ADC-EVALEZ High-Speed ADC Evaluation Platform utilizes the latest version of VisualAnalog and an FPGA-based buffer memory board. This helps to capture blocks of digital data from the analog devices high-speed ADC evaluation boards. The ADC capture board is connected to the PC through a USB port and is used with VisualAnalog to quickly evaluate the performance of high-speed ADCs. Users can view an FFT for specific analog input and encode rate to analyze SNR, SINAD, SFDR, and harmonic information.
The ADC capture board is easy to set up. Additional equipment needed includes an Analog Devices high-speed ADC evaluation board, a signal source, and a clock source. Once the kit is connected and powered, the evaluation is enabled instantly on the PC.
The ADC capture board enables numerous expansion and evaluation possibilities by virtue of its powerful reconfigurable FPGA core.
Microsoft .NET Framework 3.5 is required by parts of this program and should be installed if not already on the target machine.
Features
- 256kB FIFO depth
- Supports multiple ADC channels via a single FMC-HPC interface connector
- JESD-204B support for up to eight 6.5Gbps lanes
- Parallel input at 644MSPS SDR and 1.2GSPS DDR
- Use with VisualAnalog® software
- Based on Virtex-6 FPGA
- Simple USB port interface (2.0)
