Andes Technology AndeShape™ AICE-MICRO JTAG Debugger is designed to works with the AndeSight™ Development Suite and AndesCore™ V5 Processors. The AICE-MICRO is based on the FTDI FT2232H Dual High-Speed USB to UART/FIFO IC and is supported by OpenOCD, a free, open-source software tool for on-chip debugging, in-system programming, and boundary-scan testing.
The Andes Technology AICE-MICRO JTAG Debugger is powered via the USB connection and requires no additional power supply.
Supports Andes JTAG debug port
Supports multiple JTAG devices through Andes JTAG debug port interface
Supports the debug-on-reset feature
Supports Vref pin for auto I/O voltage detection and regulation from 1.8V to 3.3V
Supports 10-pin and 20-pin Andes JTAG connectors and connects to the debug host through a micro USB cable
10MHz maximum debug interface frequency
Development tools and platforms
AndeSight v3.1.2 or later
AndeShape Development Platforms

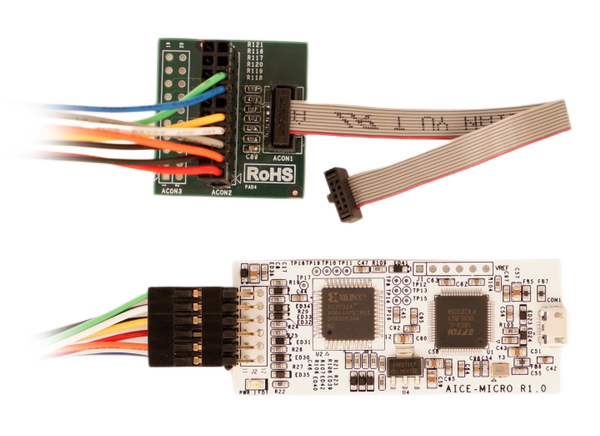

AICE-MICRO JTAG Debugger
10-pin to 20-pin JTAG adapter
10-pin JTAG cable
