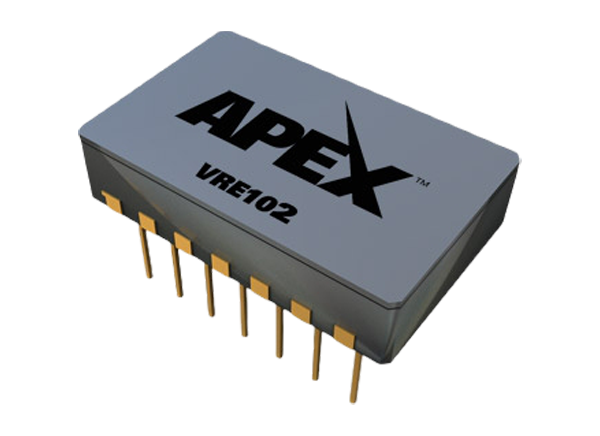

Apex Microtechnology VRE102 Ultrastable ±10V Output Voltage Reference
Apex Microtechnology VRE102 Ultrastable ±10V Output Voltage Reference provides a ±1.0mV initial accuracy and a 1.09 ppm/°C temperature coefficient over the full military temperature range. Improved accuracy is possible by a multipoint laser compensation technique. Other performance parameters improvements have been made including initial accuracy, warm-up drift, line regulation, and long-term stability. This makes the VRE102 an accurate and stable 10V reference.
Features
- ±10V output, ±1.0mV very high accuracy
- 1.09ppm/°C (-55°C to +125°C) extremely low drift
- 1.0ppm typical low warm-up drift
- 6ppm/1000 hours typical excellent stability
- Excellent line regulation – 3 ppm/V typical
- Hermetic 14-pin ceramic DIP
Applications
- Precision A/D and D/A Converters
- Transducer Excitation
- Accurate Comparator Threshold Reference
- High-Resolution Servo Systems
- Digital Voltmeters
- High Precision Test and Measurement Instruments
Typical Connection
