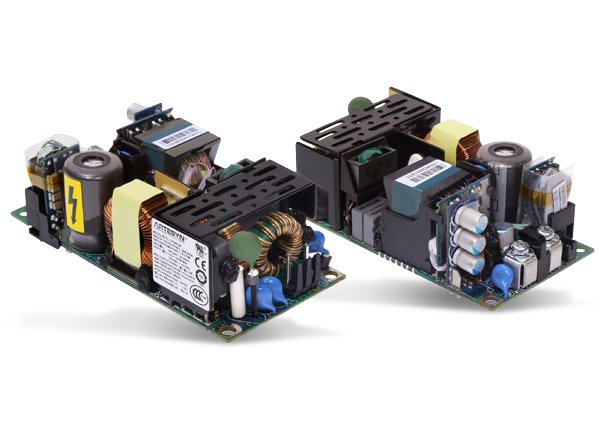

Artesyn Embedded Technologies CPS250-M Series 250 Watt AC-DC Power Supplies
Artesyn Embedded Technologies CPS250-M Series 250 Watt AC-DC Power Supplies are designed for forced air and natural convection cooling applications. CPS250-M Series Power Supplies are dual fused, type BF ready and feature active power factor correction, and built-in Class B EMI filters.
Specifications
- Input
- Input voltage range 90 - 264Vrms
- Frequency 47 - 63Hz (360 - 440Hz with higher leakage)
- Inrush current 70Apk, < 1 ms, cold start
- Efficiency 93% typical
- Leakage current Specified for medical approvals
- No load power < 500mW
- Output
- Maximum power 250W, forced-air cooling
- 155W, free-air natural convection
- Adjustment range -0% / +10%
- Holdup time 10ms @ 225W
- Fan output 12V @ 500mA
- Standby output 5V @ 100mA (on -M1 models only)
- Control and Protection
- Remote On/Off Option (on -M1 models only)
- DC OK Option (on -M1 models only)
- Overload protection Auto-recovery
- Overtemperature protection Auto-recovery with hysteresis
Features
- Total Power: 250 Watts
- Input Voltage: 90 - 264V
- # of Outputs: Single
- Designed for forced air and natural convection cooling
- Medical and ITE safety approvals, 2x MOPP
- Dual fused
- Type BF ready
- Active Power Factor Correction, 61000-3-2 compliant
- Built-in Class B EMI filter
- Less than 1U high
- LPX100 enclosure kit available
- <500mW no-load power consumption
- Three-year warranty (consult factory for extended terms)
Published: 2016-06-09
| Updated: 2022-03-11
