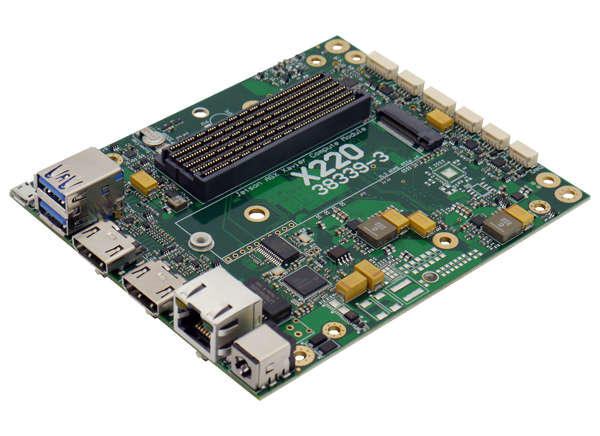

Auvidea X220-LC Carrier Board for NVIDIA Jetson AGX Xavier

Auvidea X220-LC Carrier Board supports the NVIDIA Jetson AGX Xavier and offers a reduced feature set for a low-cost solution. The 104.6mm x 125mm X220-LC Board is equipped with a GbE port, 2x USB 3.0 ports, and 2x HDMI 2.0 ports up to 4Kp60 resolution.

The Auvidea X220-LC Carrier Board provides 12V of power is equipped with a PCIe interface and an M.2 2280 slot with PCIe x4 and NVMe support. The M.2 slot supports various optional modules that are also available on the X220 and several other Auvidea Jetson carriers. These include a U110 module that adds 4x USB 2.0-based 10/100Mbps Ethernet ports with 26W PoE-PSE and an option of RJ45, IX or JST-GH connectors.

The X220-LC Carrier Board requires an AC adapter that is not included.

Specifications

  • 1x GbE
  • 2x HDMI 2.0 (up to 4kp60)
  • 2x USB 3.0 type A
  • 1x M.2 NVME PCIe x4 2280 slot
  • Extension connector - PCIe plus more
  • Micro SD card
  • 2x CAN, MCU, UART, GPIOs, etc
  • 104.6mm x 125mm Size
  • 12V Power in

Kit Contents

  • X220-LC board (38339-2)
  • Wire kit
  • Mechanical kit

Required Equipment

  • AC adapter EU Version (12V, 3A min, 5.5/2.5 plug)

Overview

Auvidea X220-LC Carrier Board for NVIDIA Jetson AGX Xavier
Published: 2020-09-04 | Updated: 2022-07-05
