BIVAR PM5-M124 LED Panel Mount Indicators

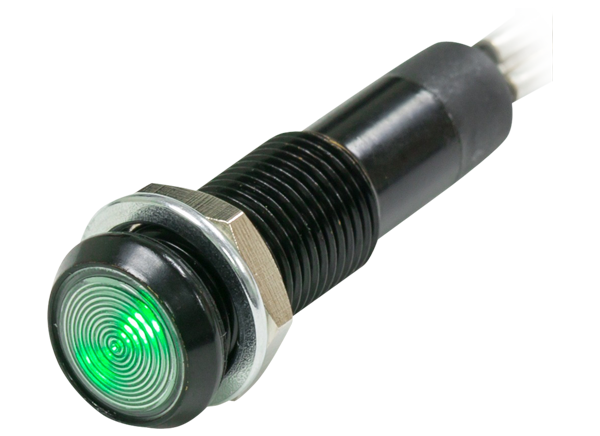

Bivar PM5-M124 LED panel mount indicators with the smart sensor technology automatically sense and adjust to provide the appropriate light output and intensity. PM5-M124 panel mount indicators are sunlight readable in bright lighting and feature auto-dimming in dark lighting. A water clear Fresnel lens (7mm) provides wide viewing angle capabilities and black anodized metal housing makes the indicators shock and vibration resistant for rugged applications. With a panel thickness ranging from 0.040" to 0.250" and a standard mounting hole size of 0.315", the Bivar PM5-M124 are fast and easy to install. Bivar PM5-M124 LED panel mount indicators also feature non-polarized quick disconnect terminal blades which also work as soldering lugs for wire connection.
Features
- IP67 rated
- Smart sensor technology
- Sunlight readable in bright lighting
- Auto-dimming in dark lighting
- Wide viewing angle capabilities
- Water clear Fresnel lens (7mm)
- Solid color indication in green, blue, red, and yellow
- Black anodized metal housing
- Panel thickness ranging from 0.040" to 0.250"
- Standard mounting hole size of 0.315"
- Non-polarized quick disconnect terminal blades
- Wide input range (12V to 24V)
- Suitable for both AC and DC operation
Applications
- Servers and server appliances
- Test and measurement equipment
- Electrical and control instrument panels
- Military and utility vehicle dashboards
- Commercial and communication control boxes
- Wireless and power line infrastructure
- Water and waste treatment equipment
Related Products
BIVAR Panel Mount Indicators
Available in nylon, quick mount nylon, IP67 rated nylon, standard metal, IP67, & EMC UL rated metal.
BIVAR MPC IP54 Rated Panel Mount Indicators
Offers IP54 protection from dirt, dust, oil, and other non-corrosive material.
BIVAR SZ LED Light Pipes
Feature a low profile lens and a flexible light pipe cut length in increments of 0.05" (0.127 cm).
Dimensions
