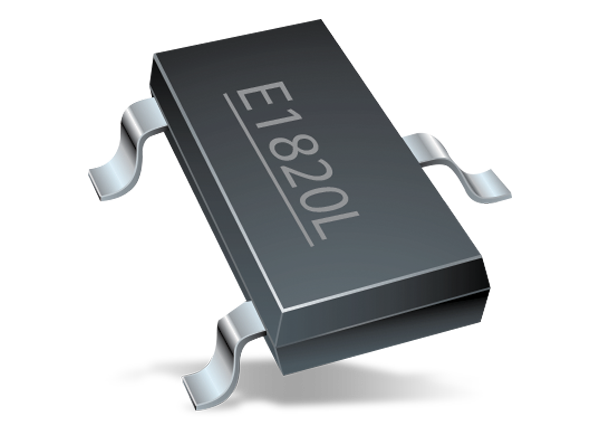

Bourns CDSOT23-TxxC-Q TVS Diodes
Bourns CDSOT23-TxxC-Q TVS Diodes achieve a 3.3 to 15V voltage range, a 500W rating, and bidirectional and unidirectional configurations. These TVS Diodes feature ESD protection of 30kV max and are AEC-Q101-compliant versions of the existing CDSOT23-TxxC models. Bourns CDSOT23-TxxC-Q TVS Diodes are ideal for telecom, computer, industrial, and consumer electronics.
Features
- Protects one or two lines
- Unidirectional and bidirectional configurations
- RoHS compliant
- AEC-Q101 compliant
Applications
- Protection of power buses
- Protection of I/O interfaces
- Overvoltage transient protection
- Telecom
- Computer
- Industrial and consumer electronic applications
Specifications
- 30kV maximum ESD protection
- 3.3V to 15V voltage range
- 500W power rating
- -55°C to +150°C operating temperature range
Related Diodes
Bourns TVS Diodes
Low capacitance devices that provide ESD, EFT, and surge protection.
Published: 2019-02-27
| Updated: 2023-03-16
