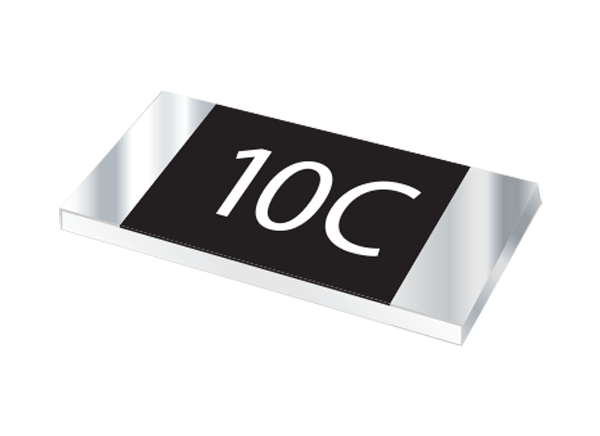

Bourns CR Thick Film Chip Resistors feature a 15V to 200V working voltage range, ±1%, ±5% resistance tolerance ratings, and up to 2A rated current. CR series resistors feature a three layer termination process with a nickel barrier that helps prevent leaching and provides excellent solderability. Bourns CR Thick Film Chip Resistors come in tape and reel packing, are RoHS compliant, and operate in the -55°C to +155°C maximum temperature range.
Tight tolerance of bottom electrode width
Tape and reel packaging
Three layer termination process
Provides excellent solderability
±1% and ±5% tolerance options
1/32W to 1W power rating @ +70°C
15V to 200V working voltage
30V to 400V overload voltage
0.5A to 2A rated current
Up to 5A maximum overload current
-55°C to +155°C maximum operating temperature range
Bourns CR0402 Thick Film Chip Resistors
Suitable for most types of soldering process with a power rating of 1/16W at 70°C.
