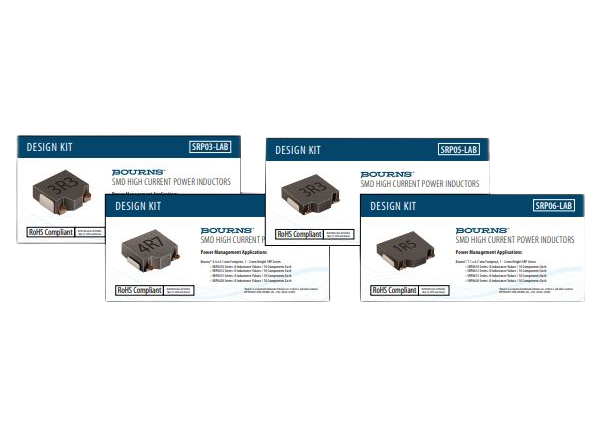

Bourns SRP-LAB Design Kits

Bourns SRP-LAB Design Kits are low-profile shielded power inductor design kits that support the design community. These kits contain inductors that provide engineers with a variety of rated currents, inductances, and sizes for quick-turn prototype testing. SRP-LAB kits have footprints ranging from 3.4mm x 3.1mm to 7.1mm x 6.7mm. Bourns SRP series power inductors are ideal for power management and EMI suppression applications in consumer, telecom, industrial, and many other electronic devices.


  • 1mm, 1.2mm, 1.5mm, and 2mm inductor heights
  • Footprint measurements
    • SRP03-LAB: 3.4mm x 3.1mm

Kit Contents

  • SRP03-LAB
    • SRP0310
    • SRP0312
    • SRP0315
    • SRP0320
  • SRP04-LAB
    • SRP0410
    • SRP0412
    • SRP0415
    • SRP0420
  • SRP05-LAB
    • SRP0510
    • SRP0512
    • SRP0515
    • SRP0520
  • SRP06-LAB
    • SRP0610
    • SRP0612
    • SRP0615
    • SRP0620
Published: 2021-05-11 | Updated: 2022-08-17
