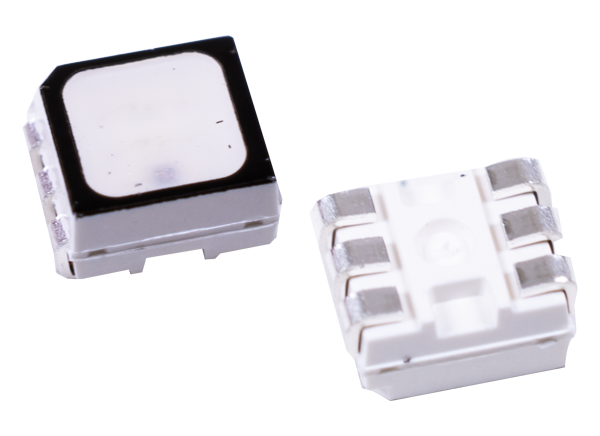

Broadcom OneLED Water Resistant, High Brightness LEDs combine high reliability characteristics with water-resistance and high operating temperatures. These features make the LEDs ideally suited to exterior and interior full color displays, video screens, and decorative lighting applications. The tri-color OneLED features a high reliability LED package with silicone encapsulation. The Mini-PLCC6 SMT package has a size of 3.4mm × 2.8mm × 1.8mm and offers water-resistance (IPx6) per IEC 60529:2001.

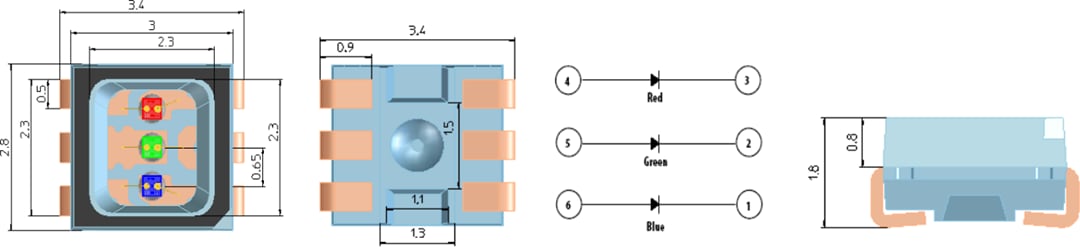

Small PLCC6 package 3.4mm × 2.8mm × 1.8mm
In-line RGB dies configuration
Individual addressable pin-out for drive configuration flexibility
High reliability LED package with silicone encapsulation
