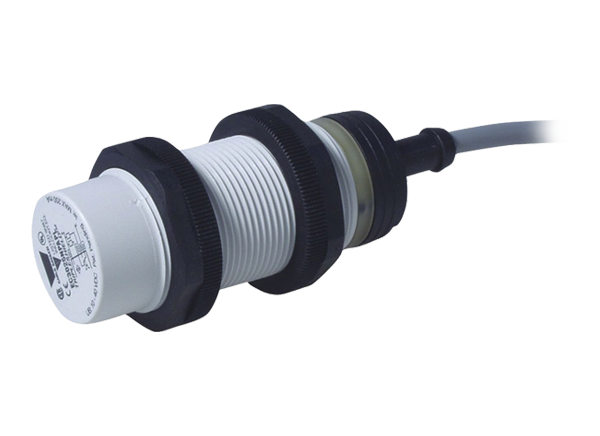

Carlo Gavazzi EC30 Capacitive Proximity Sensors

Carlo Gavazzi EC30 Capacitive Proximity Sensors feature sensing distances of 16mm (flush-mounted) or 25mm (non-flush mounted) in a -25°C to +80°C operating temperature range. The EC30 sensors offer TRIPLESHIELD™ sensor protection, make and break switching functions, high noise immunity, and IP67 protection with a yellow LED providing output ON indication. Optional features include various output types, cable or plug options, and flush and non-flush types. The Carlo Gavazzi EC30 Capacitive Proximity Sensors are ideal for use in level and plastic machinery applications.

Features

  • Features TRIPLESHIELD™ sensor protection
  • 2mm to 16mm or 4mm to 25mm adjustable sensing distance
  • Make and break switching function
  • LED indication
  • High noise immunity
  • Options
    • Flush and non-flush mounting types
    • Plug or cable version
    • AC or DC version
    • Output
      • SCR
      • 200mA DC NPN
      • 200mA DC PNP

Specifications

  • Rated operating distance
    • 2mm to 16mm (factory set at 16mm) for 3016 models
    • 4mm to 25mm (factory set at 25mm) for 3025 models
  • ≤5% repeat accuracy
  • ≤10% ripple
  • Yellow LED indication for output ON
  • IP67 (NEMA 1, 3, 4, 6, and 13)
  • Temperature ranges
    • -25°C to +80°C operating
    • -40°C to +85°C storage
  • Weight (including nuts)
    • 140g for the 3016 models
    • 150g for the 3025 models
