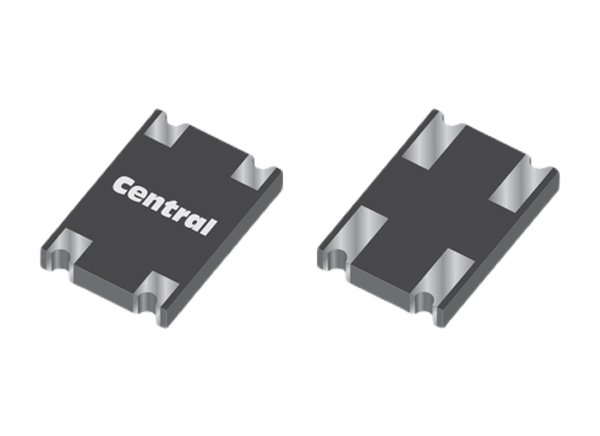

Central Semiconductor CBRDFA4-100 Full-Wave Bridge Rectifier is mounted on a durable epoxy surface mount case that utilizes the glass passivated chips. This rectifier features a high 4A current rating and low forward voltage (VF) diodes (1A maximum at 4A IF). The CBRDFA4-100 rectifier offers 1000V peak repetitive reverse voltage (VRRM), 1000V DC blocking voltage (VR), and 150A peak forward surge current (IFSM). This rectifier is available in a BR DFN-A case.
Mounted in a durable epoxy surface mount case
Maximum ratings at 25°C TA:
1000V peak repetitive reverse voltage (VRRM)
1000V DC blocking voltage (VR)
150A peak forward surge current (8.3ms)
-55°C to 175°C operating junction temperature range
45pF typical junction capacitance (CJ) at 4V VR and 1MHz frequency
Low VF diodes (1V maximum at 4A IF)
High 4A current rating
Utilizes glass passivated chips
Consumer and I/S/M built-in power supplies (low profile)
Consumer and I/S/M fast chargers (low profile)
Typical Electrical Characteristics
Central Semiconductor CBRDFSH Schottky Bridge Rectifiers
Available in low profile BR DFN package and feature high energy efficiency and reliability.
