Infineon Technologies CIPOS™ Maxi

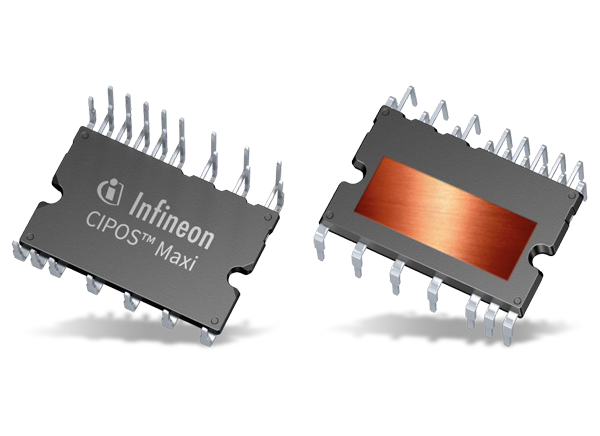

Infineon Technologies CIPOS™ Maxi integrates various power and control components to increase reliability, and optimize PCB size and system costs. These devices are designed to control three-phase AC motors and permanent magnet motors in variable speed drive applications. These applications include low-power motor drives (GPI, Servo drives), pumps, fan drives, and active filters for HVAC. The CIPOS™ Maxi are specially adapted to power applications, which need good thermal performance and electrical isolation, EMI-save control, and overload protection. Three-phase inverter with 1200V TRENCHSTOP™ IGBTs and Emitter Controlled diodes are combined with an optimized 6-channel SOI gate driver for excellent electrical performance.


  • Fully isolated Dual In-Line molded module
  • Rugged 1200V SOI gate driver technology with stability against transient and negative voltage
  • Allowable negative VS potential up to -11V for signal transmission at VBS = 15V
  • Integrated bootstrap functionality
  • Over current shutdown
  • Built-in NTC thermistor for temperature monitor
  • Under-voltage lockout at all channels
  • Low side emitter pins accessible for all phase current monitoring (open emitter)
  • Cross-conduction prevention
  • All 6 switches turn off during protection
  • Programmable fault clear timing and enable input
  • Lead-free terminal plating; RoHS compliant


  • Fan drives and active filter for HVAC, pumps, and low power motor drives (GPI, Servo Drives)
