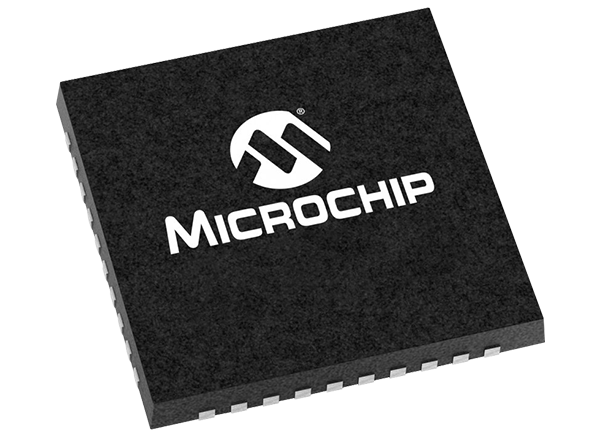

Microchip Technology UPD301B/C USB Interface ICs

Microchip Technology UPD301B/C USB Interface ICs are designed to adhere to the USB Type-C™ cable and connector specification and USB Power Delivery 3.0 (PD) specification. These ICs are stand-alone and offer a small form factor USB Type-C™ Power Delivery port controller. These ICs are integrated PD solutions with SAMD20 (32-bit ARM Cortex-M0+) microcontroller and UPD350 PD MAC/PHY functionality. The UPD301B/C integrates many analog discrete components required for USB Type-C PD applications, including two V_CONN FETs with Rp/Rd switching. Applications include point-of-sale terminals, charging lockers, IoT products and sensors, smart speakers, monitors, conference systems, power tools, multi-port charging docks, and automotive rear seat charging ports.

Features

USB Type-C™ (1) Power Delivery (PD) solution for:
- Source-only applications (UPD301B)
- Sink-only, dual role power, and dual role data applications (UPD301C)
Companion device for USB PD Software Framework (PSF) open-source firmware stack
Fully customizable software
Standard PD power profiles (15/27/45/60/100W) supported with no software modification
USB PD 3.0 compliant MAC
USB Type-C™ connector support with connection detection and control
Integrated analog discrete components reduce bill of materials and design footprint
Easily supports up to 3 additional PD ports port via UPD350 add-on
Commercial, industrial, and automotive temperature support
- 32-bit Arm Cortex-M0+ CPU
64KB flash and 8KB RAM

Optional two, three, or four-port solution via external UPD350
- SPI for external UPD350 communication
- Power delivery firmware controls all ports
Integrated analog discrete components
- V_CONN FETs with Rp/Rd switching
- Dead battery Rd termination (UPD301C only)
- Programmable current sense for overcurrent conditions
Voltage sense for overvoltage conditions
Power and I/Os:
- Integrated 1.8V voltage regulator
- 10 configurable general-purpose I/O pins
Package:
- 40-VQFN 6.0mm x 6.0mm
Environmental:
- 0°C to 70°C commercial temperature range
- Industrial/AEC-Q100 automotive grade 3
- -40°C to 85°C temperature range
