Mini-Circuits AVA-0233LN+ RF Amplifier

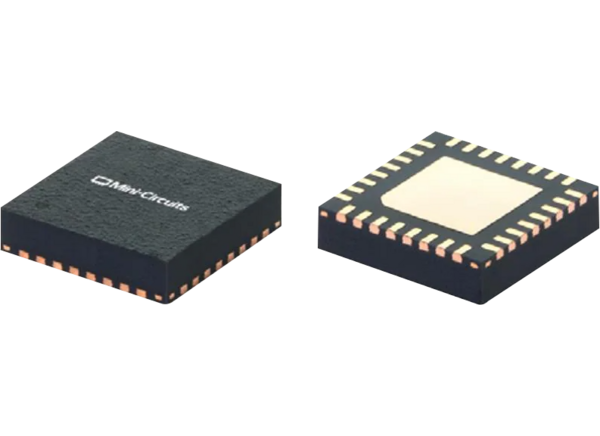

Mini-Circuits AVA-0233LN+ RF Amplifier is a GaAs pHEMT Monolithic Microwave Integrated Circuit (MMIC) distributed amplifier that operates from 2GHz to 30GHz frequency range. This amplifier provides solid performance of 16.3dB gain, 2.4dB noise figure, +13.6dB P1dB, and +25.7dBm OIP3 from a self-biased single 5V supply drawing only 65mA. The AVA-0233LN+ amplifier features a gain control of 30dB (typical) across the operating band and is housed in an industry-standard 5mm x 5mm QFN-style package. The RF ports are internally matched to 50Ω, making it easy for integration into microwave system PC boards. Typical applications include 5G MIMO, backhaul radio systems, satellite Ka-band communications, test and measurement equipment, radar, Electronic Warfare (EW), and Electronic Counter Measures (ECM) defense systems.
Features
- 2GHz to 30GHz frequency range
- 16.3dB ±1dB flat gain response
- 2.4dB (typical) noise figure
- 1.55W total power dissipation
- -45°C to 85°C operating temperature range
- 30dB gain control (typical)
- 5mm x 5mm 32-lead SMT package
Applications
- 5G MIMO and backhaul radio systems
- Satellite Ka-band communications
- Test and measurement equipment
- Radar
- Electronic Warfare (EW)
- Electronic Counter Measures (ECM) defense systems

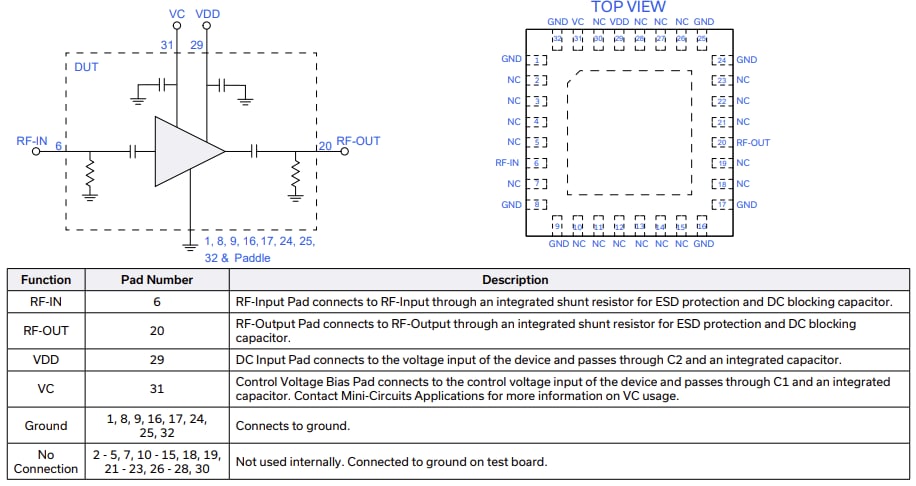

Simplified Schematic & Pad Description
Related Product
Mini-Circuits AVA Wideband Amplifiers
GaAs pHEMT MMIC amplifiers in 4mm x 4mm 20-lead QFN-style package.
