Mini-Circuits SPHSA-152+ Surface Mount Phase Shifter

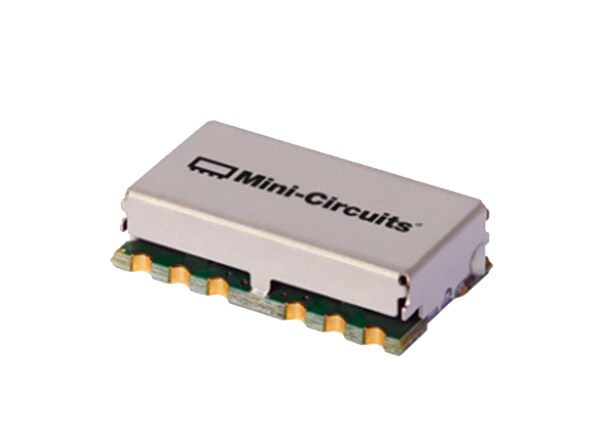

Mini-Circuits SPHSA-152+ Surface Mount Phase Shifter offers an 800MHz to 1500MHz frequency range, 50Ω impedance rating, and 20V control voltage. This phase shifter provides precise 360° phase control, supporting various popular cellular and communications application bands. Housed in a shielded, 12-lead package with wrap-around terminations, the SPHSA-152+ measures 0.44" x 0.74" x 0.19". Mini-Circuits SPHSA-152+ Surface Mount Phase Shifter provides a low insertion loss of 2.8dB and good VSWR of 1.2:1.

Features

  • Low insertion loss
  • Good VSWR
  • Wide phase shift of 360°
  • Aqueous washable

Applications

  • Cellular
  • Communication

Specifications

  • 800MHz to 1500MHz frequency range
  • 50Ω impedance rating
  • 2.8dB typical insertion loss
  • 1.2:1 typical VSWR
  • 20dBm maximum RF input power
  • 20V control voltage
  • -40°C to +85°C operating temperature range
