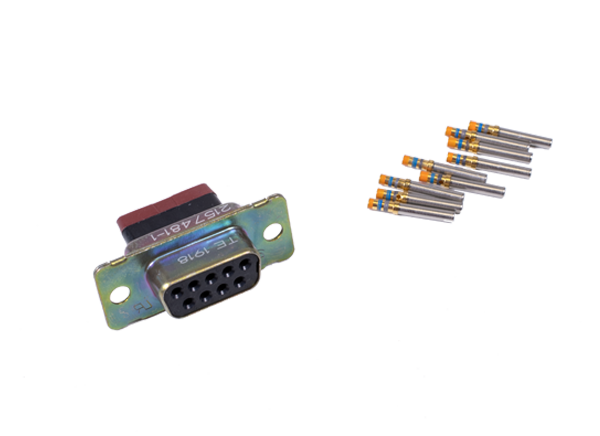

TE Connectivity's (TE) Sealed AMPLIMITE D-Sub Connectors are Mil-Spec connectors with environmental sealing to IP67 levels. TE's Series 109 standard-density Sealed AMPLIMITE D-Sub Connectors use Size 20 contacts. Series 90 high-density Sealed AMPLIMITE D-Sub Connectors use Size 22 contacts. These connectors include both grommet sealing on the wire-entry end and a one-piece interfacial seal on the mating face. They are supplied with rear-release crimp contacts.
Grommet, interfacial seal, and internal connector sealant
Tested to 1m depth
Standard and high-density versions
Designed to meet MIL-DTL-24308
Uses AS39029 QPL contacts
Intermateable with standard D-Subminiature connectors
-55°C to +125°C temperature range
5A (Size 22 contact)
7.5A (Size 20 contact)
IEC 60529 (IP sealing)
