Texas Instruments TMDSCNCD28P65X controlCARD Evaluation Module
Texas Instruments TMDSCNCD28P65X controlCARD Evaluation Module (EVM) is a low-cost evaluation and development board for the TI C2000™ MCU series of F28P65x devices. The module comes with an HSEC180 (180-pin high-speed edge connector) and, as a controlCARD, it is ideal for initial evaluation and prototyping. To evaluate Texas Instruments TMDSCNCD28P65X, a 180-pin docking station TMDSHSECDOCK is required and can be purchased separately or as a bundled kit.
Features
- Software features
- TI Code Composer Studio IDE - integrated development environment for TI microcontrollers and embedded processors
- Software development kits (SDK)
- C2000Ware - low-level device drivers and examples
- MotorControl SDK - motor control system development for various three-phase motor control applications
- DigitalPower SDK - digital power system development for various AC-DC, DC-DC, and DC-AC power supply applications
- Hardware features
- Isolated on-board XDS110 USB-to-JTAG debug probe enables real-time in-system programming and debugging
- Standard 180-pin controlCARD HSEC interface
- 2-Port EtherCAT slave controller
- Analog I/O, digital I/O, and JTAG signals at standard 180-pin HSEC interface
Kit Contents

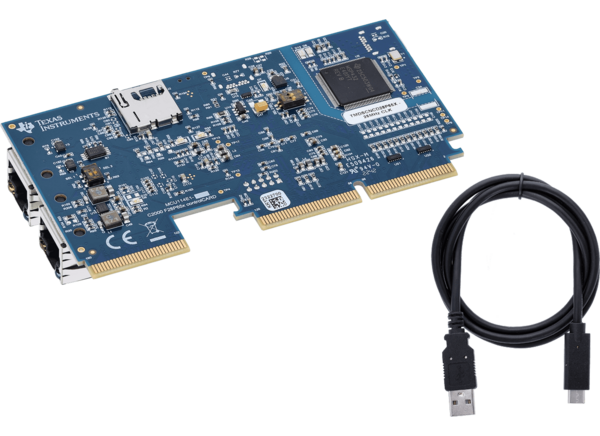

- TMDSCNCD28P65X evaluation board
- USB Type-A male to USB Type-C™ male cable

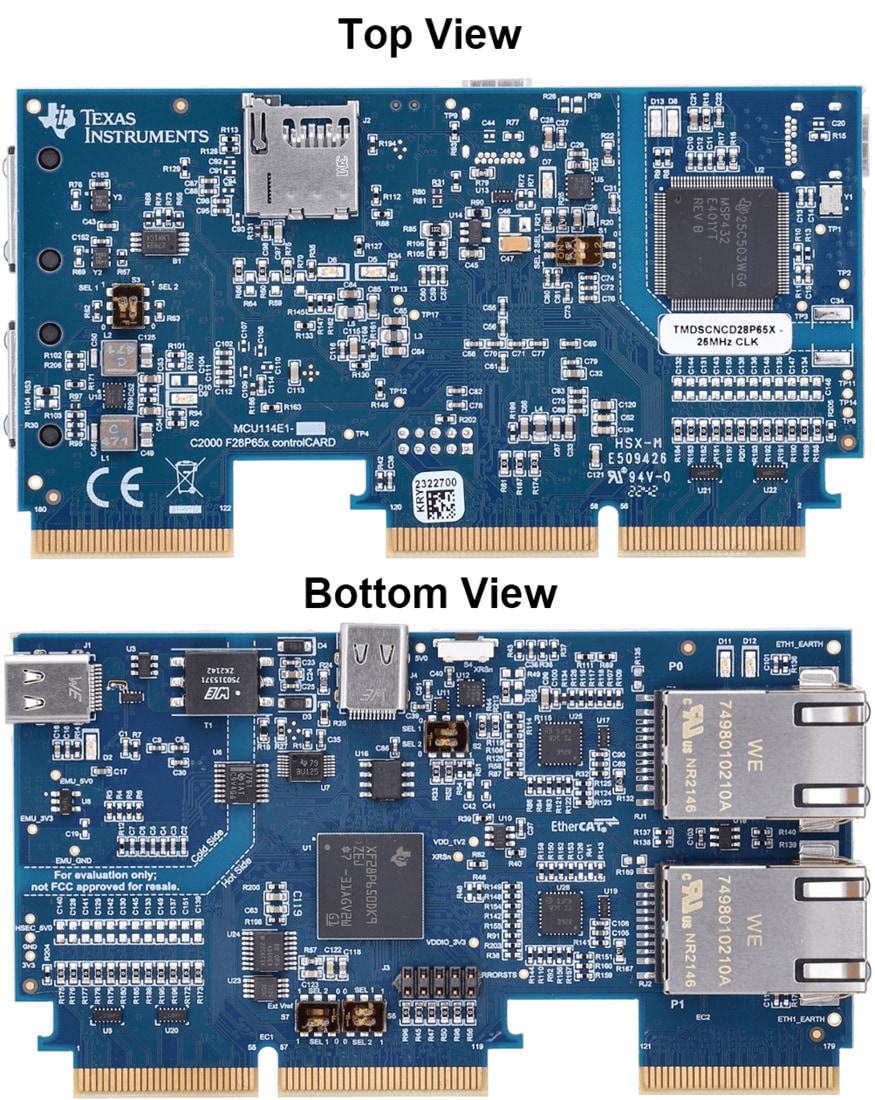

Board Layout
Related Development Tool
Texas Instruments TMDSHSECDOCK Baseboard Docking Station
Provides header pin access to key signals on compatible HSEC180-based controlCARDs.
