Texas Instruments TPS7H2211EVM eFuse Evaluation Module (EVM)

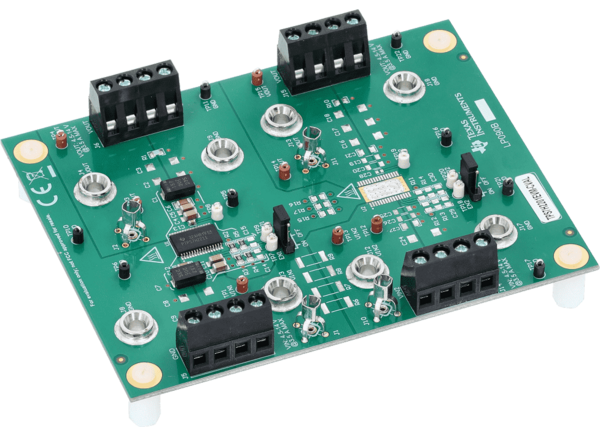

Texas Instruments TPS7H2211EVM eFuse Evaluation Module (EVM) demonstrates the operation of a single TPS7H2211 eFuse space-enhanced product. The Texas Instruments TPS7H2211EVM provides footprints that can be populated with additional components for testing customized configurations, such as parallel or redundant eFuses.
Features
- Flexible configuration options, including single- and parallel-device circuits
- Customizable soft start, enable threshold, undervoltage threshold, and capacitance
Kit Contents
- TPS7H2211EVM evaluation module
- Evaluation kit user's guide

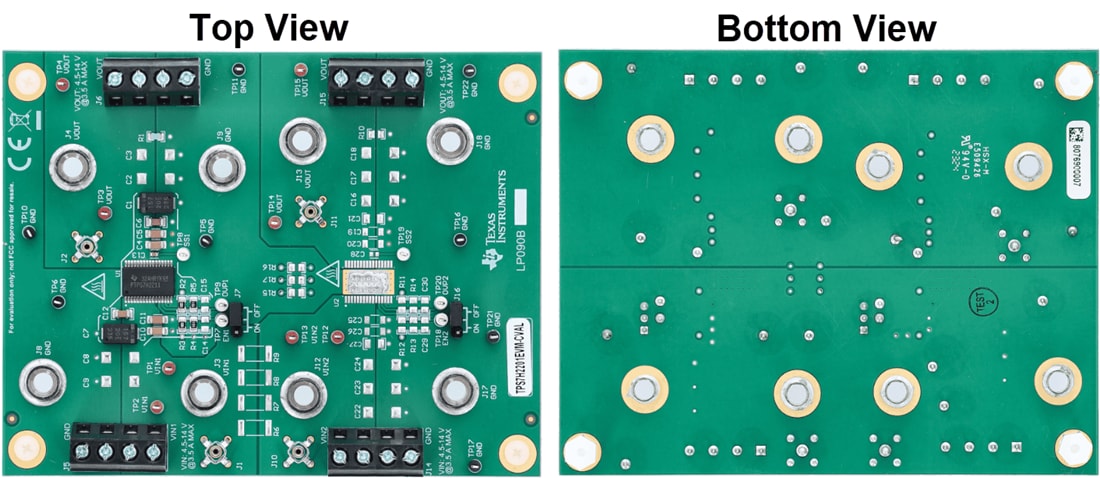

Board Layout
Related Product
Texas Instruments TPS7H2211 Single Channel eFuse
The device provides reverse current and overvoltage protection, and a configurable rise time.
Published: 2023-09-01
| Updated: 2024-10-08
