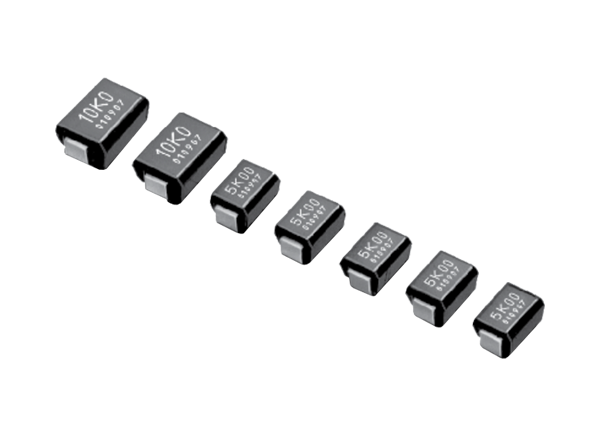

VPG Alpha Electronics MP/MQ Ultra-Precision SMT Molded Resistors
VPG Alpha Electronics MP/MQ Ultra-Precision SMT Molded Resistors offer a 30Ω to 60kΩ resistance range with 50V (MR) or 100V (MQ) maximum voltages in a wide operating temperature range (-65°C to +175°C). Other features include a primary resistance element consisting of special alloy foil several µm thick. The MP/MQ Ultra-Precision SMT Molded Resistors are ideal for use as precise amplifier circuitry and referential power supplies in items such as sophisticated electronic equipment, instrumentation, and medical electronic apparatus.
Applications
- Electronic equipment
- Instrumentation
- Medical electronic apparatus
Specifications
- Molded, J-lead terminal
- 0.1W and 0.125W rated power
- 30Ω to 60kΩ resistance range
- ±0.05% and ±0.1% resistance tolerances
- 0±5ppm/°C TCR
- -65°C to +175°C working temperature range
- +125°C maximum rated operating temperature
- 350mA maximum working current
- Maximum working voltage
- 50V (MP)
- 100V (MQ)
Published: 2021-02-02
| Updated: 2022-03-11
